SMART
DESOLDER 01

Standalone 480 W device
Combination of a hot-gas source with a vacuum pen for manual reworking of circuit boards.
Products in shop
SmartDesolder_Persp-01
SmartDesolder_Persp-front2
SmartDesolder_Persp-right
SmartDesolder_Persp-front
SmartDesolder_Persp-left
SmartDesolder_Persp-back
SmartDesolder_Persp-02

Top FeaturesManual hot-gas source with a vacuum pen

Process safety
The soft and antistatic Teflon tip prevents damage to the pads through high mechanical or electrical demands
Temperature control
The temperature-controlled airflow prevents the pads from overheating as well as neighboring components from heating up
Performance
HOTBEAM and SMART DESOLDER combination for the perfect rework
Plug and Play
Compact format, innovative design and intuitive operation
Process control
Solder pen’s controlled airflow between 5-25 l/min
Flexibility
Intuitive use, with two handheld pens

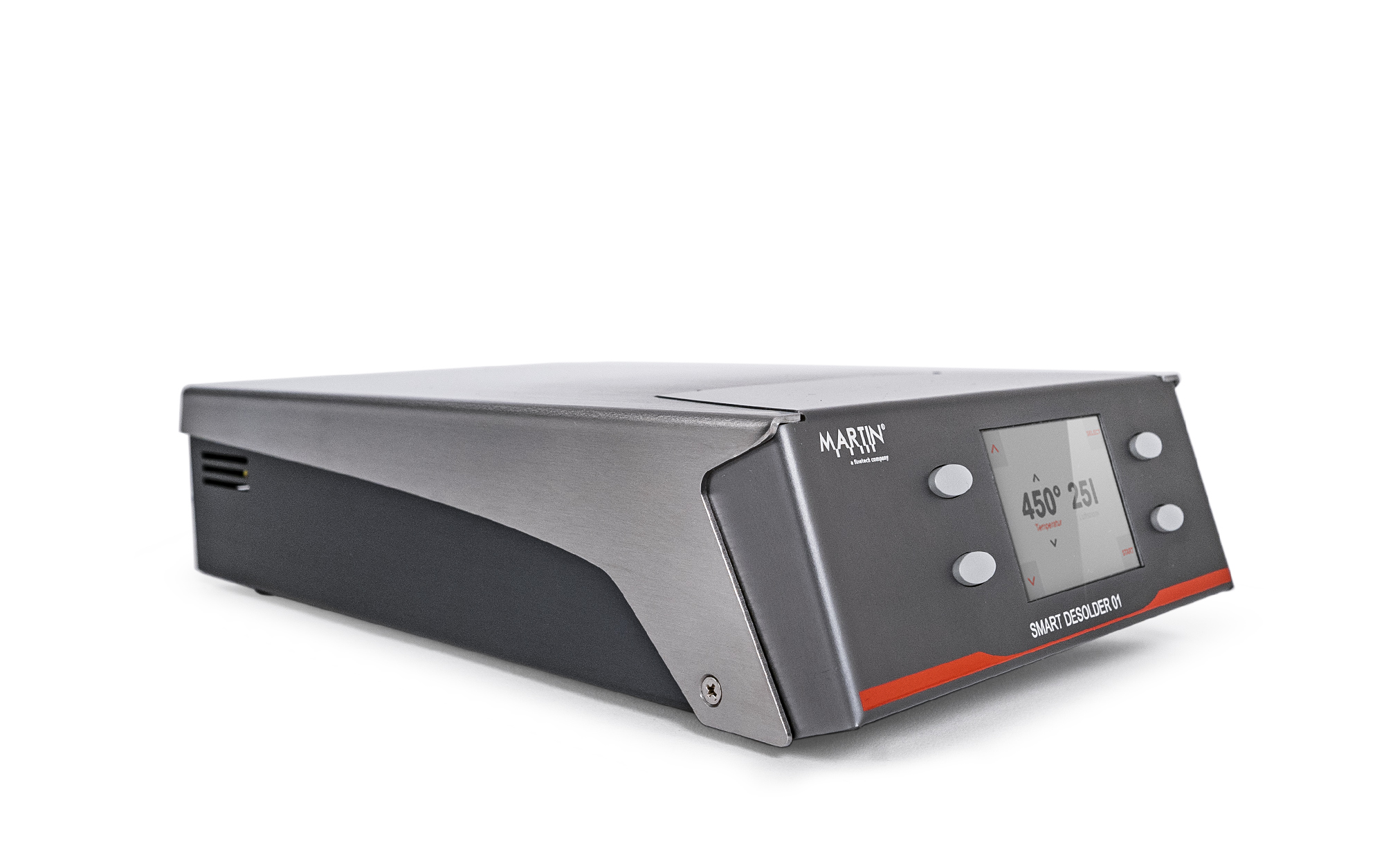

SMART DESOLDER 01

The SMART DESOLDER combines a manual hot gas source with a vacuum pen for extraction of residual solder. Damage to the pads from overheating or mechanical stress is avoided through targeted heating of the residual solder after lifting the component. The temperature-controlled airflow prevents the neighboring components from warming up. After melting, the residual solder is removed contactless by the vacuum pen. The soft Teflon tip prevents damage to the pads through mechanical demands. As a standalone device, it virtually fits on any work bench and can be operated very flexibly with two handheld pens. The HOTBEAM 04 / 05 under-heating system perfectly completes the SMART DESOLDER 01. Through this combination, the temperature behavior can be optimized by way of a sensor-supported or programmed preheating profile.

Product variations in the shop

DS01.1001
SMART DESOLDER 01

Hot Gas System for residual solder removal

Article Nr.: DS01.1001
DS01.4001
SMART DESOLDER 01 with HOTBEAM 04 - 230 V

Article Nr.: DS01.4001
DS01.4002
SMART DESOLDER 01 with HOTBEAM 04 - 115 V

Article Nr.: DS01.4002
DS01.4003
SMART DESOLDER 01 with HOTBEAM 05- 230 V

Article Nr.: DS01.4003
DS01.4004
SMART DESOLDER 01 with HOTBEAM 05- 115 V

Article Nr.: DS01.4004

Standard equipment

  • Two handheld pens with magazine for soldering and residual solder removal
  • Solder nozzle 4 mm
  • Solder removal nozzle complete with Teflon tip 1.4 mm
  • Cleaner solder removal nozzle
  • Flux filter and solder separator for old solder

Technical details

Power consumption: 480 W
Power solder pen: 380 W, 35 l/min

Mains: 100 – 240VAC, fuse TG, 3A
Pressurized air: 7.5 l/min max. 4bar clean, dry air
Dimensions: 270 x 150 x 60 mm3
Weight: 2.2 kg

Downloads

Optional extras

DB10.0002
Stand for pens / magazin

solder and vacuum pen

Article Nr.: DB10.0002
SF03.0019
PCB clamping holder with 3 fingers

for mobile phone pcbs on HB05/IRx/HIF, h=40.5mm

Article Nr.: SF03.0019
HF00.0016
Handy Fix 06

Base plate 280*380mm,4x magnet holder, h=55.5=>69,5mm adjustable

Article Nr.: HF00.0016
HT00.0119
Flux Creme lead-free 18g

0506 MA, no clean, REL0, with brush

Article Nr.: HT00.0119
DB50.0001
Soldering nozzle 2 mm

Article Nr.: DB50.0001
