HOTBEAM 05

2,000 W IR under-heating system
High-performance under-heating system for hand soldering work or preheating of medium-sized circuit boards.
Products in shop

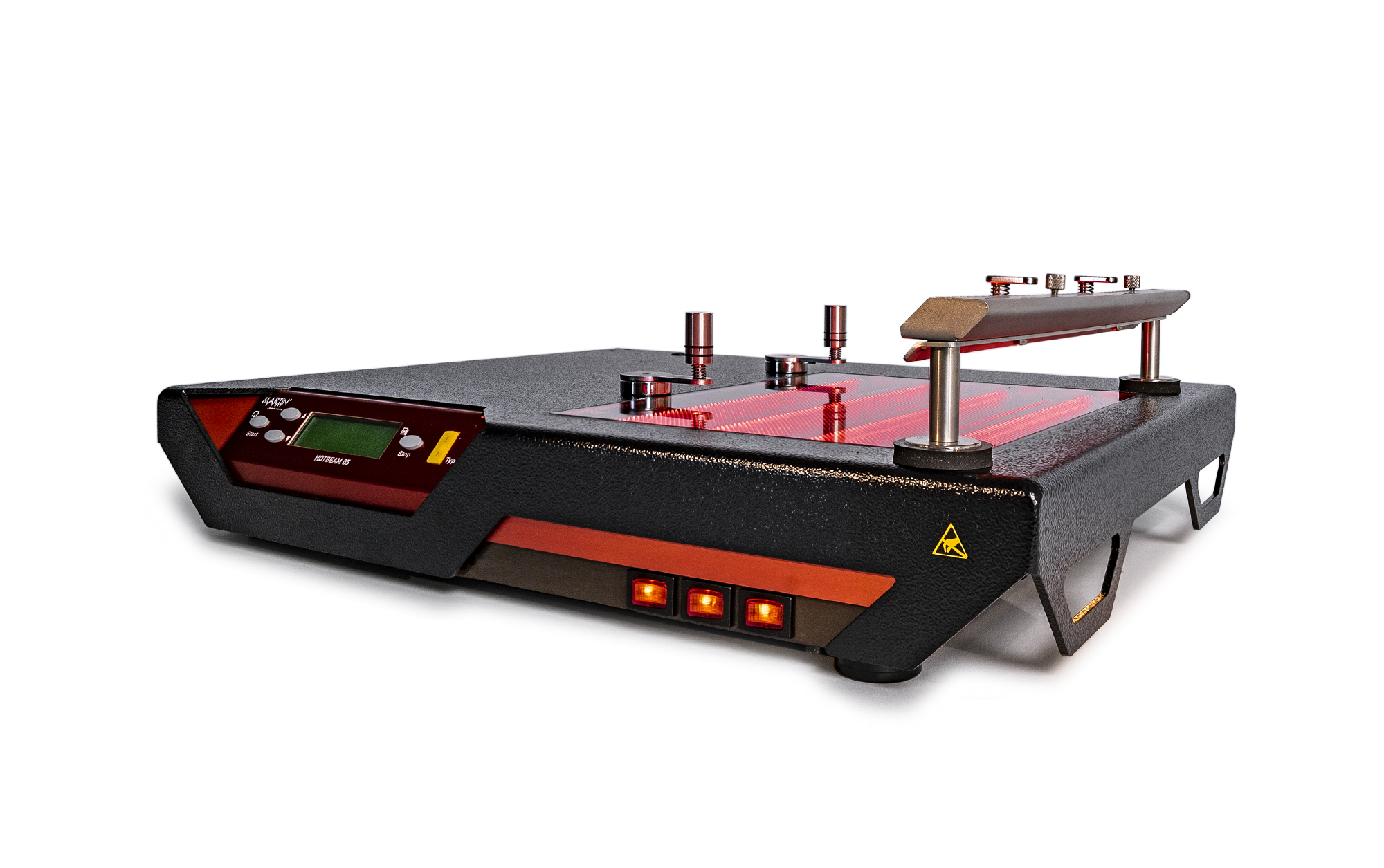

PCB Preheater Hotbeam 05
Hotbeam-05-top
Hotbeam-05-front
Hotbeam-05-right
Hotbeam-05-back
Hotbeam-05-perspective02

Top FeaturesPrecise preheating

Format
Flexibility in terms of the circuit board’s shape and size; up to 200 x 250 mm are able to be processed
Flexibility
Preheating circuit board for the subsequent Rework process, through to curing and cracking of underfill
Process reliability
Various operating modes, e.g. for consistent power, consistent temperature and profiles
Performance
HOTBEAM and SMART DESOLDER combination for the perfect rework
Process control
Use of temperature profiles via PC software
Ergonomic workstation
Table mount available

HOTBEAM 05

The high performing underheater in IR technology. This device is perfectly suitable for hand soldering tasks on mid-size and heavy PCBs. The under-heating system can be usedsimply and comfortably in the various operating modes (consistent power, consistent temperature and profile) via the intuitive menu navigation. The innovative heating-management system ensures a reproducible circuit board temperature without overshooting at the highest long-term stability.

The Auto-Profiler feature determines required device settings (profile) automatically for the user. The exact desired circuit board temperature is attained by executing the profile learned automatically by the device. Working processes become safer and more efficient. The IR lamps, which are protected by a glass plate, are independently switchable. This makes cleaning of the hot area easy and simple. Furthermore, the under-heating system can control devices (e.g. for removal by suction) or configure them in such a way that they become activated by external devices (SPS or foot switches). The EASYBEAM software allows for the sorting, editing and writing of profiles via a USB connection.

Product variations in the shop

Martin-Hotbeam-05-perspective02
HB00.0053
HOTBEAM 05 - 2000 W, 230 V

185*245 mm, 4 pcb holder+rail, t, sensor

Article Nr.: HB00.0053
Martin-Hotbeam-05-perspective02
HB00.0054
HOTBEAM 05 - 2000 W, 115 V

185*245 mm, 4 pcb holder+rail, t, sensor

Article Nr.: HB00.0054
Martin-Smart-Desolder+Hotbeam05
DS01.4003
SMART DESOLDER 01 with HOTBEAM 05- 230 V
Article Nr.: DS01.4003
Martin-Smart-Desolder+Hotbeam05
DS01.4004
SMART DESOLDER 01 with HOTBEAM 05- 115 V
Article Nr.: DS01.4004

Standard equipment

  • Preheater HOTBEAM 05.1
  • Four magnet holder 40.5mm
  • PCB magnet holder rail 40.5mm
  • Thermocouple sensor (Type K)
  • Manual

Technical details

Power consumption: 2,100 VA
Power underheating system: 2,000 W 4 x IR-lamps
Size underheating system: 185 x 245 mm2
Max. PCB size: 200 x 260 mm2
Temperature range: 50 °C – 250 °C  1°C steps

Mains: 1 Phase, 85 – 250 VAC, 50 - 60 Hz
Cooling: Electrically, 4 x fans
Dimensions: 450 x 370 x 70 mm3
Weight: 4500 g
