DOTLINER 08
The DOTLINER 08 is a high-precision dispensing robot suited for prototyping and small series production as well as developing tasks in the field of micro dispensing processes.
Products in shop

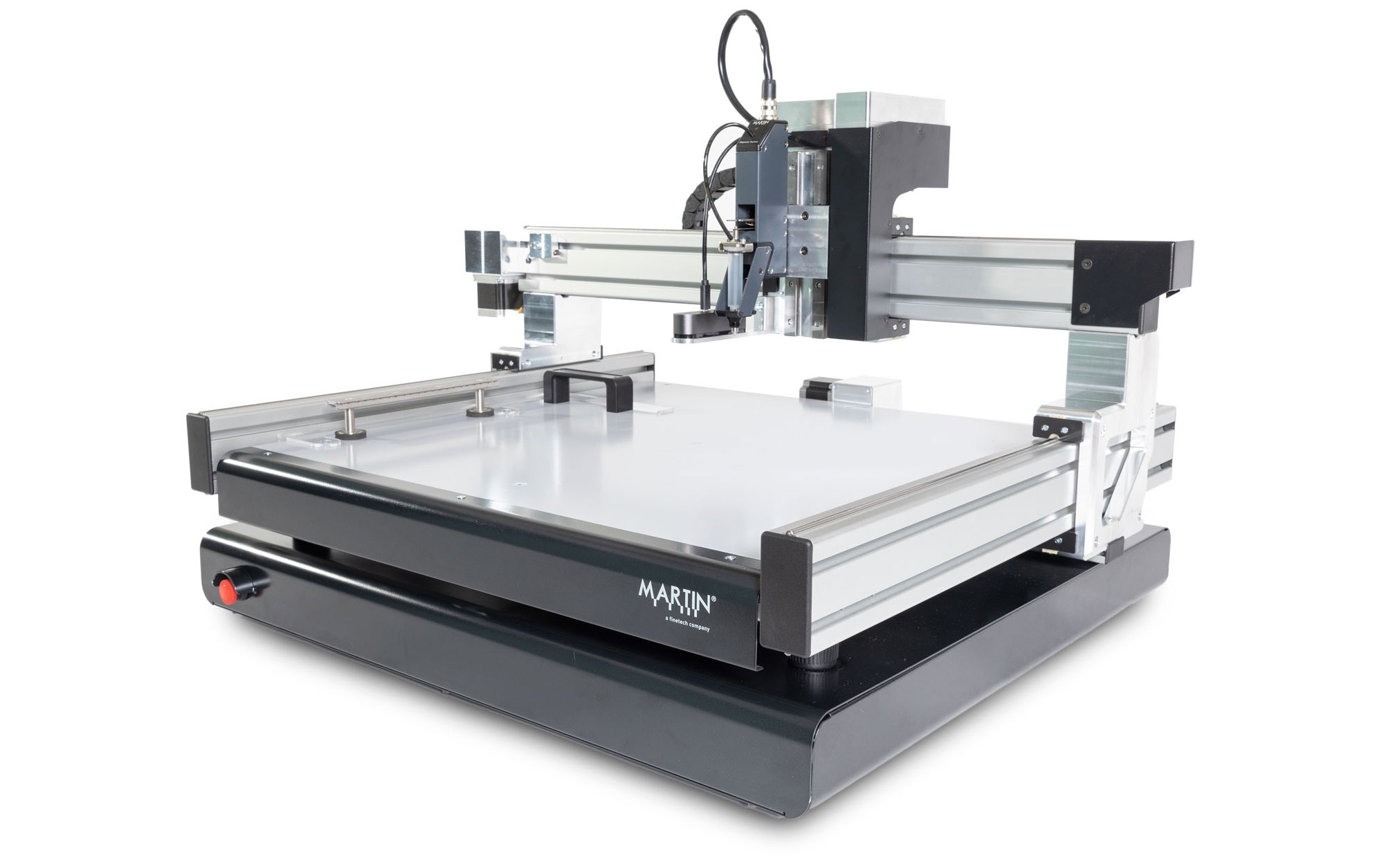

Dotliner08_dispensing_robot_pers_02_web
Dotliner_top_web
Dotliner_front_web
Dotliner_pers_01_web
Dotliner_back_web

Top Features

Documentation
Tracking of all dispensing processes via Industry 4.0 compliant logging functionality
Multifunctionality
Processing of Gerber, Extended Gerber, Excellon Data, HPGL, DXF, G-Code, Step, STL
Performance
Viscosities from 1 - 100,000 mPas
Reproducibility
Compensation of temperature fluctuations via nozzle and cartridge temperature control in the range of -15K to 50°C
Substrate size
620 mm x 800 mm x 100 mm; overhead clearance for boards/substrates with particularly large components
Precision
1 nl resolution

DOTLINER 08

The DOTLINER 08 combines a high-precision dispenser and XYZ gantry system. Enabled by volumetric time-pressure dispensing technology, smallest volumes are dispensed as dot, line or meander shapes with highest repeatability and remain unaffected by changing environmental influences. Intuitive design, fast process changes as well as the possibility to process a wide range of different materials are characteristic features of the device. Cartridge and dispensing nozzle can be tempered independently, the dispensing nozzle is heatable as standard. This allows repeatable dispensing results due to a constant viscosity of the medium as well as the use of temperature sensitive materials. With the integration of all functions of the Clever Dispense 06, the DOTLINER 08 is the reliable partner for micro assembly, SMD rework and surface-mounting.

Product variations in the shop

Dotliner08_Dosierroboter_pers_02_web
DL08.0000
DOTLINER 08 with dispensing head 5 ccm
Article Nr.: DL08.0000

Standard equipment

  • Control unit CLEVER DISPENSE 06 with 5 ccm dispensing head
  • Motorized XYZ gantry system
  • Color-zoom-camera with up to 8 MP resolution
  • Hight sensor for dispensing head
  • 4x magnet holders for PCBs, 40.5 mm
  • PCB support rail, 40.5 mm
  • Test point and stand-by platform
  • EASY DISPENSE 08 software
  • Manual

Materials

  • SMD adhesive
  • Alcohol
  • Silicone
  • Thermal conductive adhesives
  • Flux
  • Solder paste
  • Aqueous
  • Oil
  • Grease
  • Underfill
  • Adhesive Conductive Paste
  • Sealants

Processes

  • Glob Top
  • Line dispensing
  • Dot dispensing
  • Microdispensing
  • Underfill dispensing
  • Adhesive bonding
  • Coating

Technical details

Max. PCB size: 620 mm x 800 mm
System accuracy: 50 µm
Travel range:     490 mm x 420 mm x 120 mm
Travel speed: 500 mm/s
Travel acceleration: 3000 mm/s²
Step resolution of axes: 3.2 µm
Dot volume: 0.001 – 5.0 mm³
Dot diameter: ≥ 0.1 mm
Line pressure: 0.1 – 5.0 bar
Retract vacuum:         -20 mbar – 0 mbar
Nozzle heating: up to 90 °C
Mains: 230 VAC / 140 VA
Pressurized air: 5.5 - 8 bar / water and oil free
Dimensions (L x W x H): 900 mm x 790 mm x 650 mm
Weight:               70 kg

Options

Dispensing head: 3, 10, 30, 55 ccm
Nozzle temperature control: from 15 K below room temperature to +50 °C
Cartridge temperature control: from 15 K below room temperature to +50 °C
Underheater: on request

Optional extras

Martin-2711-Dispensing head with nozzle heating
DK06.0001
Dispensing head 3ccm

with nozzle heating

Article Nr.: DK06.0001
Martin-2711-Dispensing head with nozzle heating
DK06.0002
Dispensing head 5ccm

with nozzle heating

Article Nr.: DK06.0002
Martin-2711-Dispensing head with nozzle heating
DK06.0003
Dispensing head 10ccm

with nozzle heating

Article Nr.: DK06.0003
Martin-2711-Dispensing head with nozzle heating
DK06.0004
Dispensing head 30ccm

with nozzle heating

Article Nr.: DK06.0004
Martin-2711-Dispensing head with nozzle heating
DK06.0005
Dispensing head 55ccm

with nozzle heating

Article Nr.: DK06.0005
