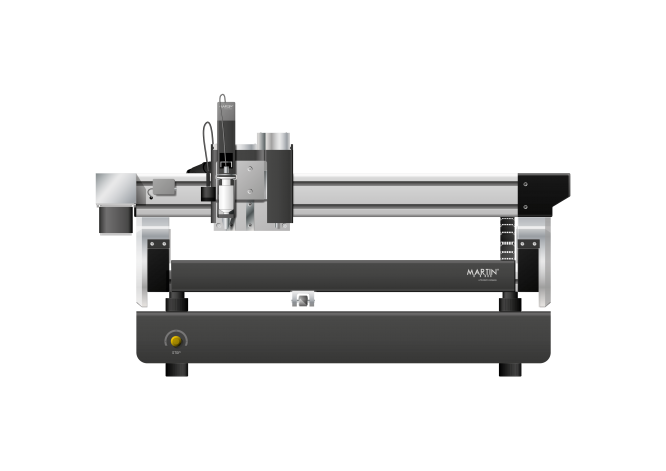

DOTLINER 08

DOTLINER 08

Set variations

Article Nr. Description Amount Price Remember
DL08.0000
DOTLINER 08

Article Nr.: DL08.0000

Optional extrasDOTLINER 08

DISPENSE optional extras

DK06.0001
Dispensing head 3ccm

with nozzle heating

Article Nr.: DK06.0001
Read more
DK06.0002
Dispensing head 5ccm

with nozzle heating

Article Nr.: DK06.0002
Read more
DK06.0003
Dispensing head 10ccm

with nozzle heating

Article Nr.: DK06.0003
Read more
DK06.0004
Dispensing head 30ccm

with nozzle heating

Article Nr.: DK06.0004
Read more
DK06.0005
Dispensing head 55ccm

with nozzle heating

Article Nr.: DK06.0005
Read more
DK06.0501
Dispensing head 3ccm for CD06 HC

with nozzle temperature control

Article Nr.: DK06.0501
Read more
DK06.0502
Dispensing head 5ccm for CD06 HC

with nozzle temperature control

Article Nr.: DK06.0502
Read more
DK06.0503
Dispensing head 10ccm for CD06 HC

with nozzle temperature control

Article Nr.: DK06.0503
Read more
DK06.0504
Dispensing head 30ccm for CD06 HC

with nozzle temperature control

Article Nr.: DK06.0504
Read more
DK06.0505
Dispensing head 55ccm for CD06 HC

with nozzle temperature control

Article Nr.: DK06.0505
Read more
DK06.1005
Cartridge Heater 30 and 55ccm

for dispensing head CD06H

Article Nr.: DK06.1005
Read more
DK06.1502
Cartridge Temperature Control 5ccm

for dispensing head CD06 HC

Article Nr.: DK06.1502
Read more
DK06.1503
Cartridge Temperature Control 10ccm

for dispensing head CD06 HC

Article Nr.: DK06.1503
Read more
DK06.1505
Cartridge Temperature Control 30 & 55ccm

for dispensing head CD06 HC

Article Nr.: DK06.1505
Read more
martin-image-placeholder
DK00.0030
Hight sensor for dispensing head

dispensing w/o spacer, incl. spacer "0.0"

Article Nr.: DK00.0030
Read more
HT00.0002
Adhesive Volume Meter KVM 03

measuring range 0.01-3.0 cmm

Article Nr.: HT00.0002
Read more
martin-image-placeholder
PD50.0003
Starter Kit DOTLINER for adhesives applications

Dispensing needles/nozzles Set
Spacer pliers type A,B,C
SMD Adhesive 5 ccm
Magnifier 5x
Fuses and O-rings

Article Nr.: PD50.0003
Read more
martin-image-placeholder
PD50.0002
Starter Kit DOTLINER for solder paste applications

Metal dispensing nozzle 0.30mm
Spacer 0.13mm for metal-nozzle 0.3mm
Micro dispensing nozzle interior-Ø 0.17mm
Replacement nozzle 0.17mm
Cleaning set for metal nozzles
PCB "MARTIN" for training
Solder paste 5ccm finepitch-3 lead free
Solder paste 5ccm super finepitch-6 lead free
Magnifier 5x
Fuses and O-rings

Article Nr.: PD50.0002
Read more

Dispensing nozzles

HT00.8009
Micro dispensing nozzle interior-Ø 0.17mm

spacer 0.08mm, for paste 6, pitch 0.4 - 0.8 mm

Article Nr.: HT00.8009
Read more
martin-image-placeholder
HT00.8004
Micro dispensing nozzle interior-Ø 0.17mm / 0.0 HS

for paste 6, pitch 0.4 - 0.8 mm

Article Nr.: HT00.8004
Read more
HT00.8010
Metal dispensing nozzle interior-Ø 0,20mm

for paste 5, pitch 0.5 - 1.0mm

Article Nr.: HT00.8010
Read more
HT00.8011
Metal dispensing nozzle interior-Ø 0.30mm

for paste 3, pitch 0.6 - 1.5mm

Article Nr.: HT00.8011
Read more
HT00.8012
Metal dispensing nozzle interior-Ø 0,40mm

for paste 3, pitch 0.8 - 2.5mm

Article Nr.: HT00.8012
Read more
HT00.8014
Metal dispensing nozzle interior-Ø 0.60mm

for paste 3, pitch 1.0 - 2.5mm

Article Nr.: HT00.8014
Read more
HT00.9009
Spacer "0.0"

for metal nozzle with interior-Ø 0.16 / 0.2 / 0.3 / 0.4 / 0.6mm

Article Nr.: HT00.9009
Read more
HT00.9010
Spacer 0.10mm

for metal-nozzles with interior-Ø 0.2mm

Article Nr.: HT00.9010
Read more
HT00.9011
Spacer 0.13mm

for metal-nozzles with interior-Ø 0.3mm

Article Nr.: HT00.9011
Read more
HT00.9012
Spacer 0.25mm

for metal-nozzles with interior-Ø 0.3 / 0.4 / 0.6mm

Article Nr.: HT00.9012
Read more
HT00.9023
Spacer pliers "0.0" type A

for dispensing needles with interior-Ø 1.19 - 1.60mm, 1 ring

Article Nr.: HT00.9023
Read more
HT00.9022
Spacer pliers "0.0" type B

for dispensing needles with interior-Ø 0.51 - 0.84mm, 2 rings

Article Nr.: HT00.9022
Read more
HT00.9021
Spacer pliers "0.0" type C

for dispensing needles with interior-Ø 0.15 - 0.51mm, 3 rings

Article Nr.: HT00.9021
Read more

Dispensing needles

VD90.0039
Dispensing needles/nozzles set

10 pieces each 18 types, box
Dispensing needles interior-Ø [mm]:
0.15; 0.20; 0.25; 0.33; 0.41; 0.51; 0.58; 0.69; 0.84; 1.19; 1.32; 1.60
Dispensing nozzles interior-Ø [mm]:
0.25; 0.41; 0.58; 0.84; 1.19; 1.60

Article Nr.: VD90.0039
Read more
