Martin-8120-Reballing 04 05 set eco standard

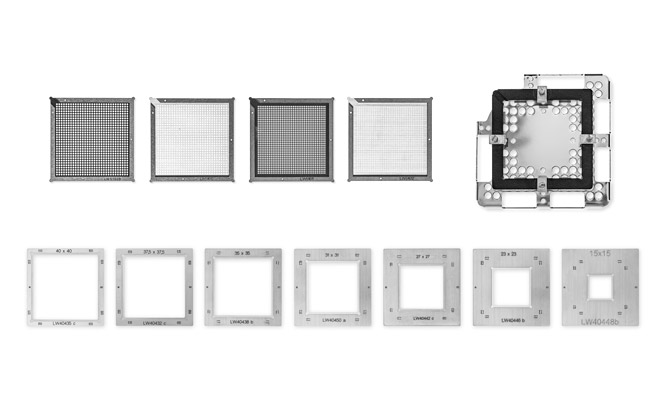

Reballing 04/05 Set eco Standard

Reballing-Halter BGA 45*45mm
Reballing Rahmen Set BGA eco 7 Stück
(15, 23, 27, 31, 35, 37.5, 40)
4 Reballing Masken BGA 45*45mm:
Maske BGA n=961 / Pitch=1,27 / Grid=31*31 / Ball=0,762
Maske BGA n=900 / Pitch=1,27 / Grid=30*30 / Ball=0,762
Maske BGA n=1369 / Pitch=1,00 / Grid=37*37 / Ball=0,60
Maske BGA n=1296 / Pitch=1,00 / Grid=36*36 / Ball=0,60

Artikelnr. Bezeichnung Anzahl Preis Merken
LW50.9001
Reballing 04/05 Set eco Standard

Reballing-Halter BGA 45*45mm
Reballing Rahmen Set BGA eco 7 Stück
(15, 23, 27, 31, 35, 37.5, 40)
4 Reballing Masken BGA 45*45mm:
Maske BGA n=961 / Pitch=1,27 / Grid=31*31 / Ball=0,762
Maske BGA n=900 / Pitch=1,27 / Grid=30*30 / Ball=0,762
Maske BGA n=1369 / Pitch=1,00 / Grid=37*37 / Ball=0,60
Maske BGA n=1296 / Pitch=1,00 / Grid=36*36 / Ball=0,60

Artikelnr.: LW50.9001

weitere Varianten

martin-image-placeholder
LW50.9004
Reballing Set eco Finepitch

Reballing-Halter BGA 45*45mm
Reballing Rahmen Set BGA eco 7 Stück
(15, 23, 27, 31, 35, 37.5, 40)
4 Reballing Masken BGA 45*45mm:
Maske BGA n=1849 / Pitch=0,80 / Grid=43*43 / Ball=0,50
Maske BGA n=1764 / Pitch=0,80 / Grid=42*42 / Ball=0,50
Maske BGA n=1369 / Pitch=1,00 / Grid=37*37 / Ball=0,60
Maske BGA n=1296 / Pitch=1,00 / Grid=36*36 / Ball=0,60

Artikelnr.: LW50.9004
martin-image-placeholder
LW40.0350
Reballing Minioven Set CSP-Basis

Minioven, Kapton Tape, Cutter

Artikelnr.: LW40.0350
martin-image-placeholder

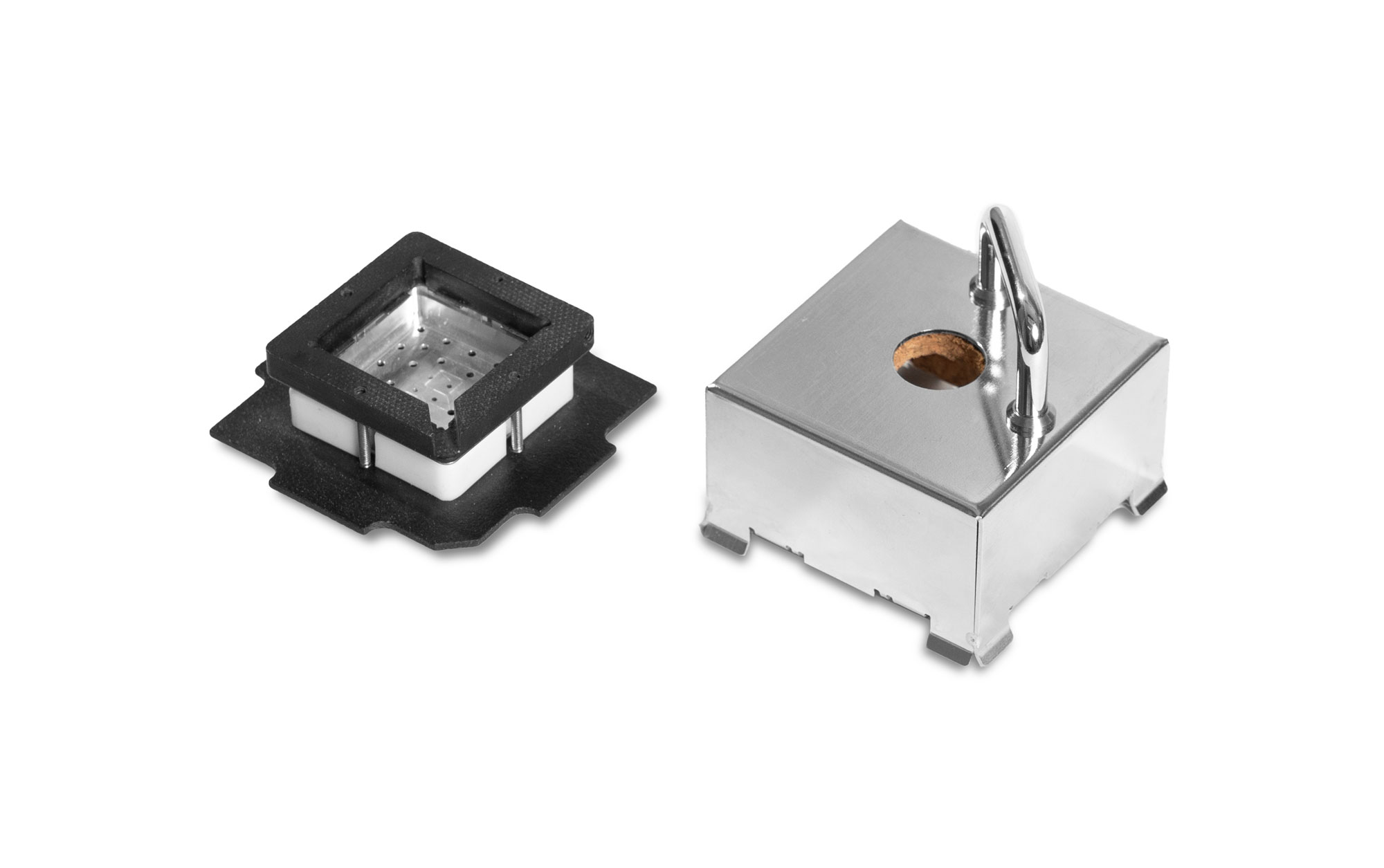

LW40.0417
Reballing Minioven Set BGA 45*45mm eco

Minioven, Kapton Tape, Cutter

Artikelnr.: LW40.0417
martin-image-placeholder
LW50.9003
Reballing Set PS 4

(Prozessor PS 4 und PS 4 Pro)
Reballing-Halter BGA 64*64mm
Reballing Rahmen BGA 40*40mm
Reballing Rahmen BGA 42*42mm
2 Reballing Masken BGA

Artikelnr.: LW50.9003
SF29.0002
Prebumping 05 Set QFN

Printer, Rakel, Halter, Pinzette, neue Prebumping Maske

Artikelnr.: SF29.0002
martin-image-placeholder
LW40.0351
Prebumping Minioven Set QFN-Basis

Minioven, Printer, Kapton Tape, Cutter

Artikelnr.: LW40.0351
