EXPERT 10.6 IV
Semiautomatic hybrid Rework station with adjustable heating system for the repair of small circuit boards, such as those found in smartphones.
Top FeaturesCamera-supported Rework
Expert 10.6 IV

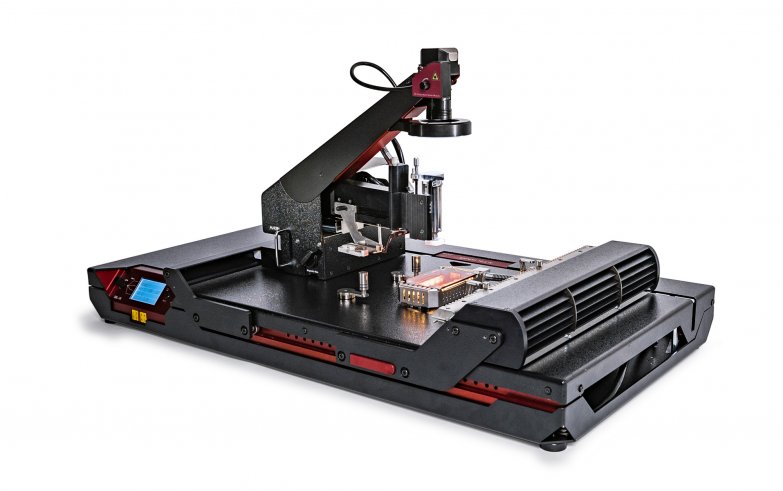

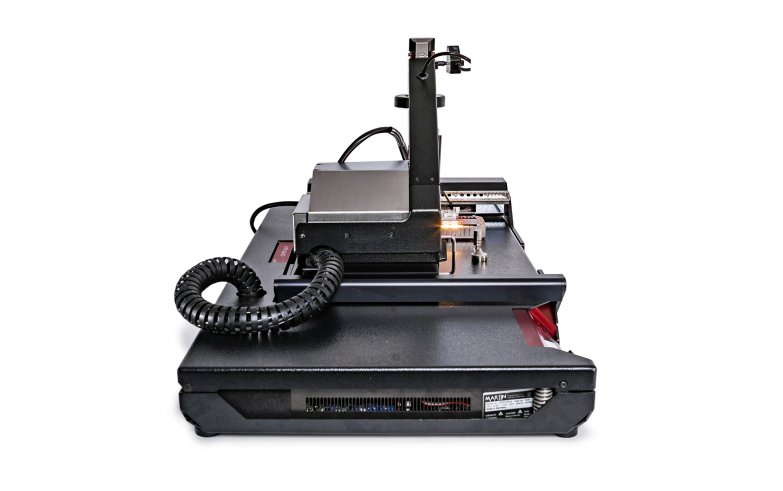

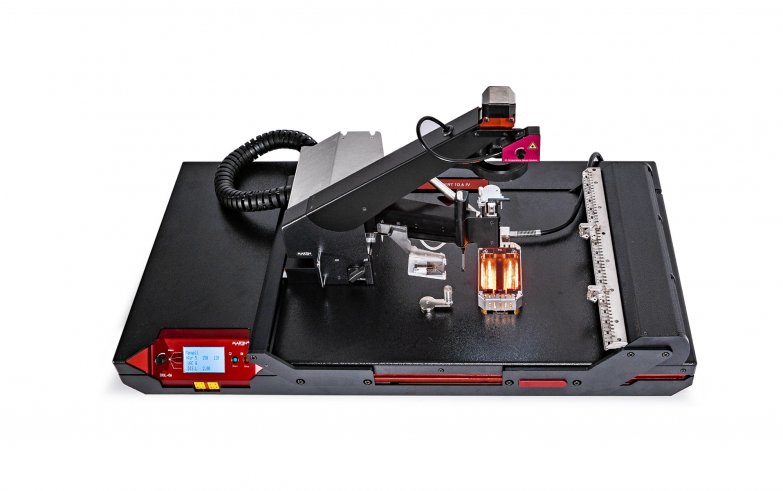

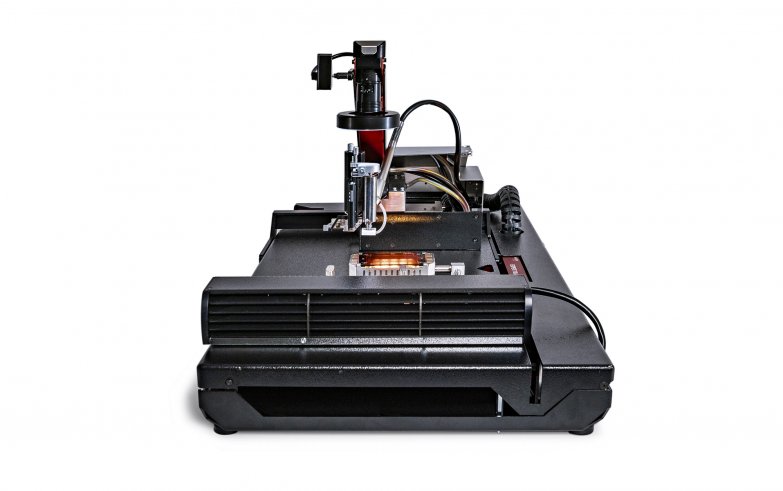

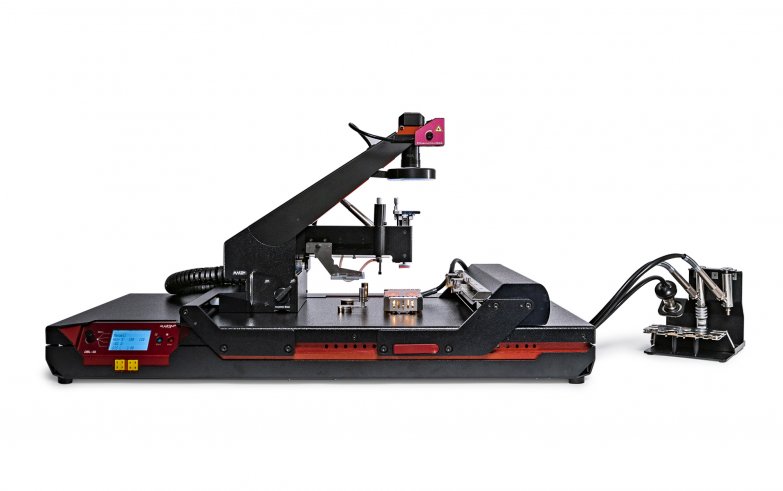

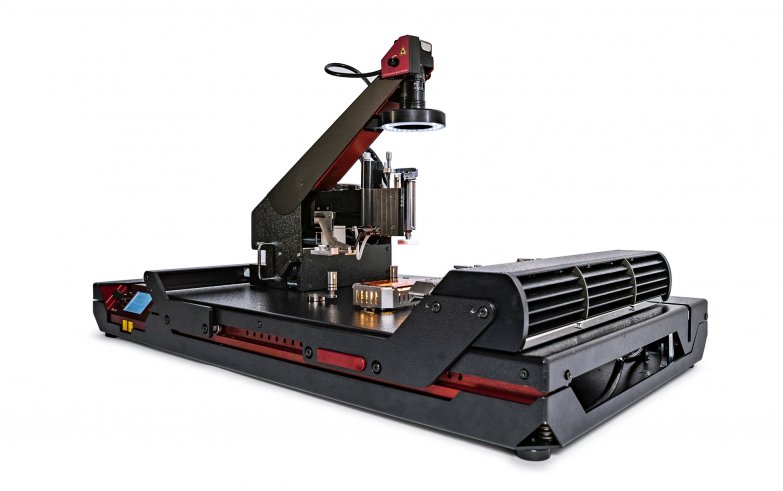

410 W Rework station with IR under-heating system (80 x 60 mm²) and automated SMD placement process by Auto Vision Placer (AVP) incl. software EASYSOLDER 07 and DBL 06 control unit with six high-resolution sensors inputs for thermocouples (Type K). This unit is particularly suitable for small PCBs found in smartphones and PDAs with fine-pitch components in varying package dimensions.
Product variations in the shop
 | DB00.1068 | EXPERT 10.6 IV IR rework station, 410W, autom. placement Article Nr.: DB00.1068 |
Standard equipment
- Tool set for dispensing, placing, residual solder removal and soldering with magazine
- Set of placement nozzles (BGA/CSP) 3 mm, 5 mm, 8 mm, 10 mm
- Set of soldering nozzles (CSP/QFN), 9 mm, 11 mm 13 mm, 16 mm
- Set of soldering nozzles (SO) 10x15 mm², 15x25 mm²
- Placement nozzle for manual placement of small components (0,5 mm)
- Two camera lenses (BGA und CSP)
- Two thermocouple sensors (type K)
- Two PCB magnet holder 40.5 mm (standard)
- PCB support rail 40.5 mm
- Two PCB clips to install at hand rest
- Foot switch
- Manual
- Intuitive software EASYSOLDER 07 with touch integration
Components
- LED rework
- Daughter boards
- Interposer boards
- Sub assemblies
- RF frames
- RF shields
- Rework on flex
- Small passives down to 0402
- SON
- PGA
- QFP
- PoP
- DFN
- QFN
- µBGA/CSP
- BGA
- Sockets
- Connectors
- CPU
- Underfiller or coated components
- Film capacitor
Processes
- Dipping
- Paste printing
- Solder removal
- Soldering
- Desoldering
- Reballing
- Dispensing
Videos
The semi-automatic Rework station with hot gas facilitates the reliable and precise rework of BGA, CSP, and QFN components, connectors, sockets, micro SMDs and more.
The Printer Tool on the Expert 10.6 rework system allows solder paste or flux to be printed directly onto small components such as quad flat no-leads, enabling immediate placement onto a printed circuit board. Printing ...
For Extensive Tasks: EXPERT 10.6 The rework station family EXPERT 10.6 has been developed for the reliable and precise rework of SMDs, sockets and connectors. Innovative technologies, such as Advanced Vision Placement (AVP), ...
Technical details
| Power consumption: | 1000 VA | ||||||||||||||||||||||||||
| Power solder pen: | 300 W, 35 l/min | ||||||||||||||||||||||||||
| Power under-heating system: | 110 W, 2 x IR-lamps | ||||||||||||||||||||||||||
| Size under-heating system: | 80 x 60 mm² | ||||||||||||||||||||||||||
| Max. PCB size: | 100 x 80 mm² | ||||||||||||||||||||||||||
| Resolution motion system: | 0,001 mm | ||||||||||||||||||||||||||
| Placement accuracy: | ± 0,015 mm | (Flip Chip)* | |||||||||||||||||||||||||
| ± 0,030 mm | (CSP) | ||||||||||||||||||||||||||
| ± 0,040 mm | (BGA) | ||||||||||||||||||||||||||
| High resolution CMOS-camera: | 5 Mio. Pixel, USB2 | ||||||||||||||||||||||||||
| Size of component: |
|
||||||||||||||||||||||||||
| Mains: | 1 Phase, 230VAC, Fuse 16A | ||||||||||||||||||||||||||
| Pressurized air: | 5-8 bar, 100 l/min | clean, dry air | |||||||||||||||||||||||||
| Dimensions: | 865 x 460 mm² | ||||||||||||||||||||||||||
| Weight: | 70 kg | ||||||||||||||||||||||||||
| * Optional extras |
Downloads
| Product flyer | 1.2 MB | Download |
Optional extras
 | SF64.0501 | Tool Slider 32mm for AVP 4.1 Article Nr.: SF64.0501
|
|||||
 | SF64.0525 | Dip Tool 0.08mm with squeegee for tool shuttle 32 / 40mm Article Nr.: SF64.0525
|
|||||
| SF64.0526 | Dip Tool 0.15mm with squeegee for tool shuttle 32 / 40mm Article Nr.: SF64.0526
|
|||||
 | SF64.0527 | Dip Tool 0.22mm with squeegee for tool slider 32 / 40mm Article Nr.: SF64.0527
|
|||||
 | SF64.0520 | Print Tool with squeegee for tool shuttle 32 / 40mm Article Nr.: SF64.0520
|
